Train Horn on a Tesla or EV: Frunk Install, 12V & Amp Limits

Installing a train horn on a Tesla or another EV is not just possible — the frunk on most electric cars is a friendlier place to mount one than any gas engine bay. The tricky part is electrical: depending on the model year, your “12-volt” system may actually run at 12.8, 16, or even 48 volts, and that changes how you power a compressor.

Why an EV Is a Better Horn Platform Than You Think

Strip the engine out of a vehicle and you get two gifts for a horn install. First, space: the frunk and the cavities around it have no exhaust manifold, no serpentine belt, and no 200°F block radiating heat at your air tank. As one EV horn maker puts it, the frunk is a cleaner mounting environment than a traditional engine bay — less heat, fewer moving parts, more room.

Second, the electrical side is surprisingly forgiving. Every EV carries a low-voltage accessory battery that is separate from the high-voltage drive pack, and the car automatically keeps it topped up through a DC-DC converter. One Tesla Model S owner who documented a full train horn install reported the compressor refilling for only about a minute after a long blast, with the car recharging the accessory battery from the main pack on its own — no risk of waking up to a dead battery because you honked too much.

There’s also a practical argument for a louder horn on an EV. Federal rule FMVSS 141 requires hybrids and EVs to emit a pedestrian alert sound only when moving below 30 km/h (about 18.6 mph) or in reverse. Above that speed an EV is nearly silent — your horn is the only way anyone hears you coming.

First, Figure Out Which Low-Voltage System You Have

This is the step gas-truck install guides skip, and it’s the one that matters most on an EV. Tesla alone has shipped four different low-voltage setups:

Vehicle	Low-voltage system	What it means for a horn kit
Most non-Tesla EVs (Leaf, Ioniq, EV6, etc.)	12 V	Standard 12 V kits work as-is
Tesla Model 3/Y through ~early 2022	12 V lead-acid	Standard 12 V kits work as-is
Tesla Model 3/Y from ~2022, refreshed S/X	16 V lithium-ion (rails at 15.5–15.8 V, 6.9 Ah)	Above the rated supply of most 12 V compressors — see below
Some newer Model 3 (Highland)	12.8 V LFP	Effectively 12 V — verify yours
Cybertruck	48 V (rails at 41–42 V)	Cannot feed a 12 V kit directly

Per Battery Design’s teardown data, the 16-volt lithium battery Tesla switched to weighs only about 4 lbs and holds 6.9 Ah — a fraction of a lead-acid battery’s capacity, which is fine because the DC-DC converter does the heavy lifting. Owner reports on Tesla forums show the Model 3 Highland shipping with either 16 V NMC or 12.8 V LFP batteries depending on build, so check the label on your actual battery before buying anything.

Frunk Mounting: What Actually Fits

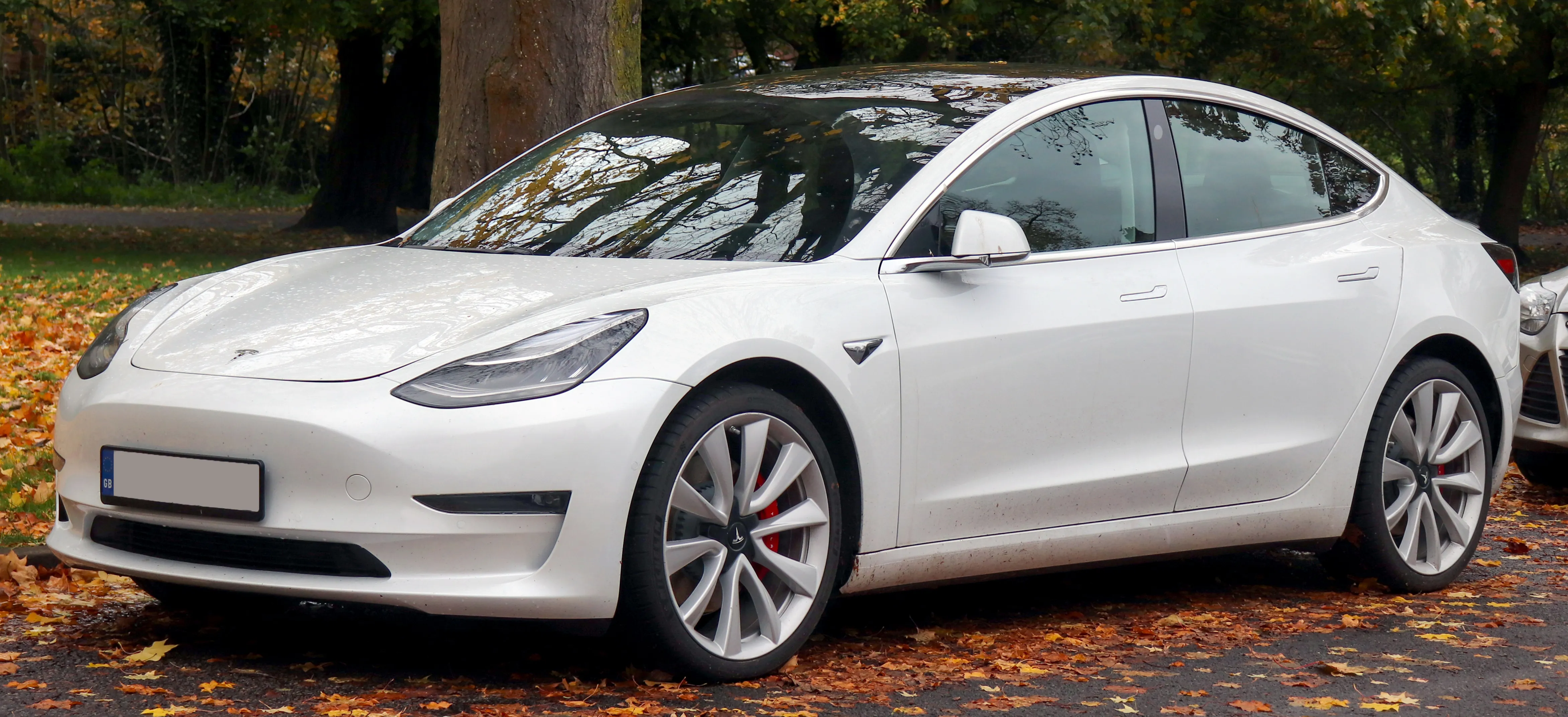

On the Model 3 and Model Y the low-voltage battery sits in the frunk under a panel on the right side, which conveniently puts your power source inches from the best mounting real estate. The documented Model S build above tucked a complete HornBlasters Bullet kit into the space around the frunk tub.

Size-wise, compact all-in-one kits are the play here. HornBlasters lists the Bullet 127H air-source unit at 15.0” L x 6.0” W x 13.0” H and 13.75 lbs — a 1.5-gallon tank with a 120 PSI system that delivers roughly a 6-second honk and refills in about 35 seconds, at $384.99 for chrome. The 2-gallon, 150 PSI Bullet 228H steps up to an 8-second honk but grows to 18.9” long, which is pushing it for most frunk cavities. If nothing fits up front, the underbody rails work the same as on a pickup — our guide on where to mount a train horn on a truck covers bell clearance and drainage angles that apply directly.

Two EV-specific cautions:

• Never drill into or strap anything to the frunk tub’s crash structure — the front of an EV is engineered crumple zone.
• Don’t block the frunk drain channels; a tank sitting in pooled water rusts from the bottom up.

Wiring: Straight to the Battery, Through a Relay

The wiring recipe on a 12 V EV is the same as any vehicle — the full walkthrough is in our step-by-step train horn install guide — but the EV version is actually easier because the battery is right there in the frunk:

1. Mount the air-source unit and horns, then run a short power lead to the low-voltage battery’s positive terminal.
2. Put a fuse or circuit breaker as close to the battery as possible. The documented Model S install used a 30 A circuit breaker plus a quick-disconnect on the hot wire.
3. Ground the compressor and relay to a chassis bolt — the Model S build used a frunk bolt into the frame rather than running a second wire to the battery.
4. Trigger the horn valve through a relay from a button, or piggyback the stock horn signal so your steering wheel fires both.

What you should not do on an EV: tap a factory fuse circuit for compressor power. Tesla’s low-voltage circuits are budgeted tightly and monitored — a 20 A compressor on a shared circuit will pop fuses at best. Full-power operation needs a dedicated, relay-switched feed from the battery, fused for the compressor’s rated draw.

Amp Draw: What the System Actually Handles

Train horn compressors are modest loads by 12 V standards. HornBlasters lists the Bullet 127H’s compressor at 18 amps max and the 228H’s HB-2 at 19 amps. Viair’s spec sheets put the popular 275C at 20 amps and the heavy-duty 480C at 23 amps. That’s less than many aftermarket audio amplifiers, and because the compressor only runs in short refill bursts — 35 seconds on the 127H, roughly 75 seconds on the 228H — the duty on the low-voltage system is brief and intermittent.

The car’s DC-DC converter replenishes the accessory battery automatically, so even the tiny 6.9 Ah lithium battery in newer Teslas isn’t a practical limitation; it’s a buffer, not the energy source. Size your wire and fuse exactly as you would on a truck — our amp draw, fuse and wire gauge guide has the sizing table for 18–23 A loads at typical frunk cable lengths.

The 16V and 48V Catch

Here’s the genuinely EV-specific problem. Viair rates its 12-volt compressors for a 13.8-volt supply — normal alternator voltage on a gas vehicle. A 16 V Tesla’s rails sit at 15.5–15.8 V, about 2 volts over that spec. Some owners run 12 V accessories on 16 V cars anyway, but you’re overdriving the motor, shortening compressor life, and voiding its warranty. The clean solutions on a 16 V car are a step-down DC-DC converter rated for the compressor’s full amp draw, or picking equipment explicitly rated for the higher input.

The Cybertruck is a harder no: its 48 V architecture runs rails at 41–42 volts, which will destroy 12 V horn electronics instantly. You’d need a 48-to-12 V converter sized for at least the compressor’s 20+ amp output — a chunky, non-trivial component. For that truck, the next option makes more sense.

The Zero-Wiring Alternative: Portable Battery Horns

If your EV runs 16 V or 48 V — or you lease and can’t modify anything — a self-contained portable train horn sidesteps the entire low-voltage question. These run on their own cordless-tool battery, so vehicle voltage is irrelevant. BossHorn’s portable quad horns, for example, run on a Milwaukee® M18™ or DeWalt® 20V battery you already own, and we’ve tested both in our Milwaukee M18 quad horn review and DeWalt 20V quad horn review.

• No wiring, no relays, no voltage mismatch — works identically on a 12 V Leaf and a 48 V Cybertruck
• No permanent modification, so nothing to argue about at lease return or a warranty claim
• Moves between vehicles, the garage, and the boat

The trade-off is honk duration and the hassle of grabbing it — the full comparison is in our air-tank vs battery-powered horns guide.
