HornBlasters King 3 544K Train Horn Kit Review (2026)

Methodology

This review aggregates publicly available information from manufacturer specifications, retailer listings, and verified user reviews. We do not perform hands-on testing. Last reviewed: October 13, 2026. Our primary source is HornBlasters’ official King 3 544K Train Horn Kit page, cross-checked against the brand’s standalone King 3 Train Horn page, the HB-1NM compressor page, the HornAir 5-Gallon Onboard Air System page, HornBlasters’ decibel-testing article, and the buyer reviews attached to the standalone King 3 horn listing. HornBlasters does not publish a decibel figure or chord frequencies for the King 3, and we say so rather than estimate. Every external source is listed in the Sources section at the end.

Quick verdict

The King 3 544K pairs HornBlasters’ own three-chime King 3 horn with the same 5-gallon, 150 PSI HornAir 544K air system the brand uses on its King 5, Admiral and Katrina heavy-duty kits. The air-system spec sheet is detailed, the horn carries a 5-year defect warranty, and the kit is about $870 cheaper than HornBlasters’ reconditioned Nathan AirChime K3 544K kit. The weak points are acoustic data and value: there is no published dB rating, test distance or Hz breakdown, the rated honk time is only 5-6 seconds, and the kit’s list price is slightly higher than buying the horn and air system separately. Our editorial rating is 3.7/5: a solid choice for buyers who want a big three-chime locomotive-style horn without paying genuine Nathan prices, but not the “budget-friendly” bargain the product copy suggests.

What it is

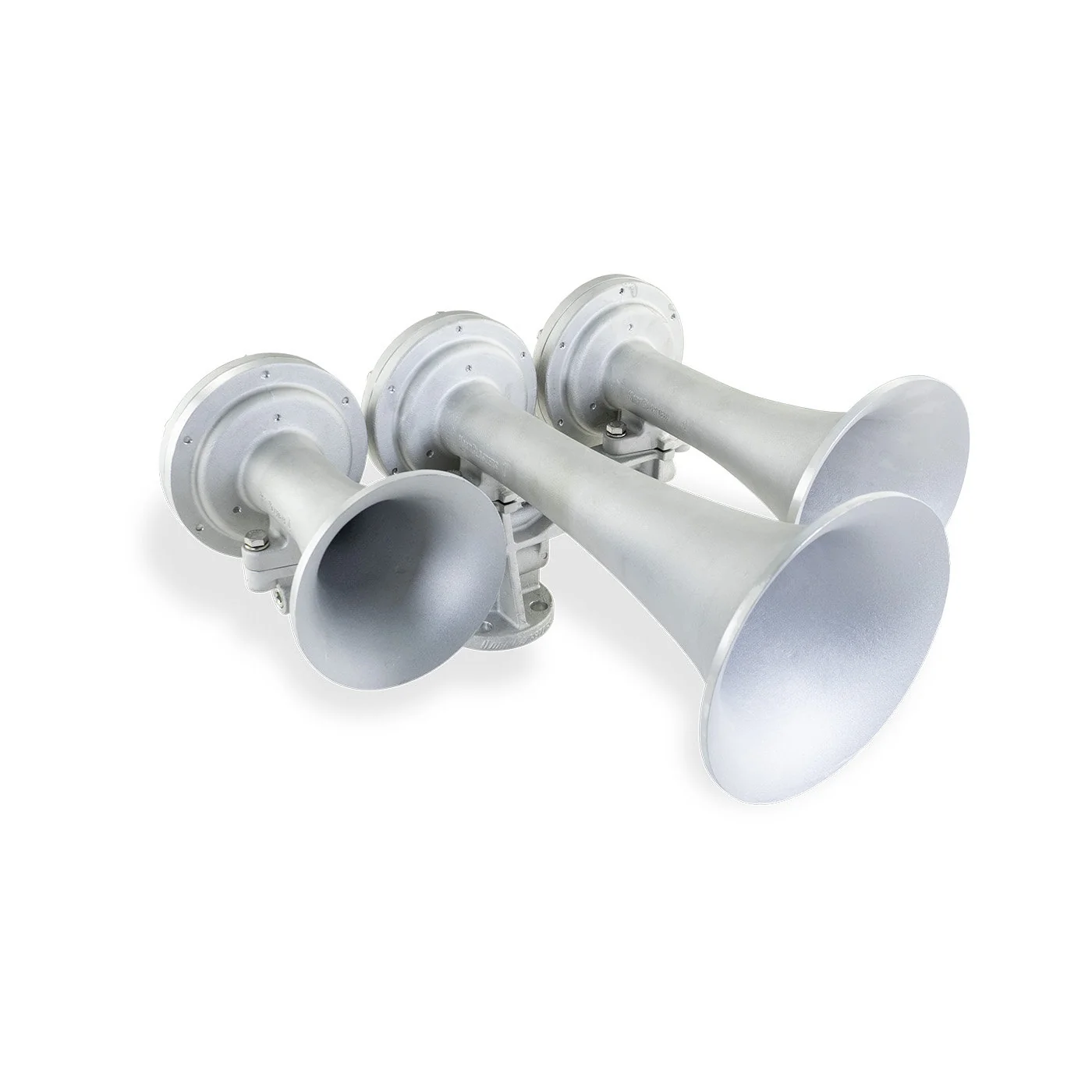

The King 3 544K is a complete onboard-air train horn kit. The horn is the HornBlasters King 3, a three-chime unit that the brand’s standalone listing describes as die-cast aluminum with a stainless steel diaphragm. The kit page adds “pre-tuned one-piece bell construction” and a powder-coated black finish for durability. It is a large, heavy horn: 16 in long, 19 in wide and 9.5 in tall, weighing 30 lb, fed through a 1/2 in NPT port.

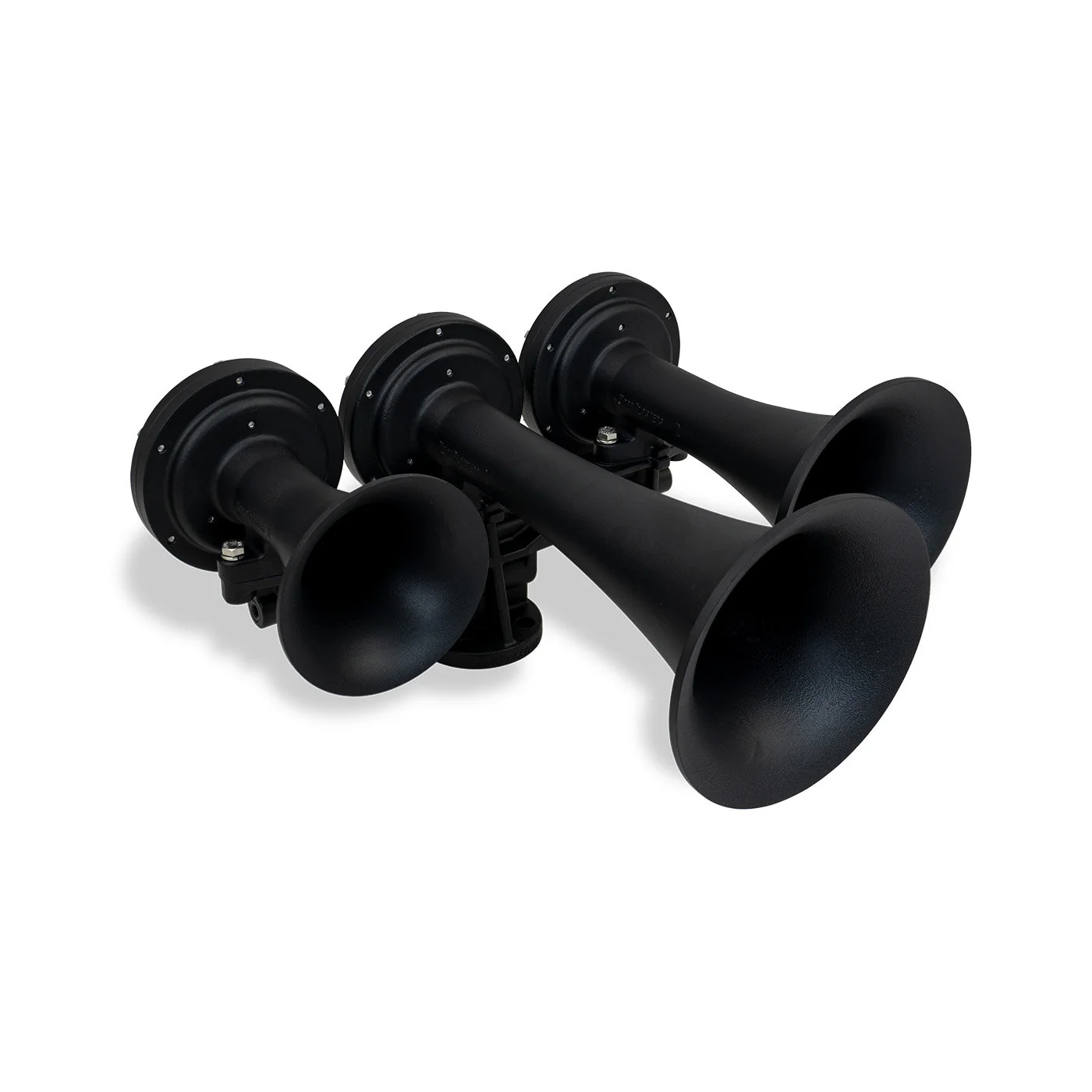

HornBlasters sells two finishes. The raw horn kit is part number HK-H3-544K at $1,879.99, and the Stealth Black horn kit is HK-H3K-544K at $1,979.99. The listing has been live since December 2019, so this is an established catalog item, not a new launch.

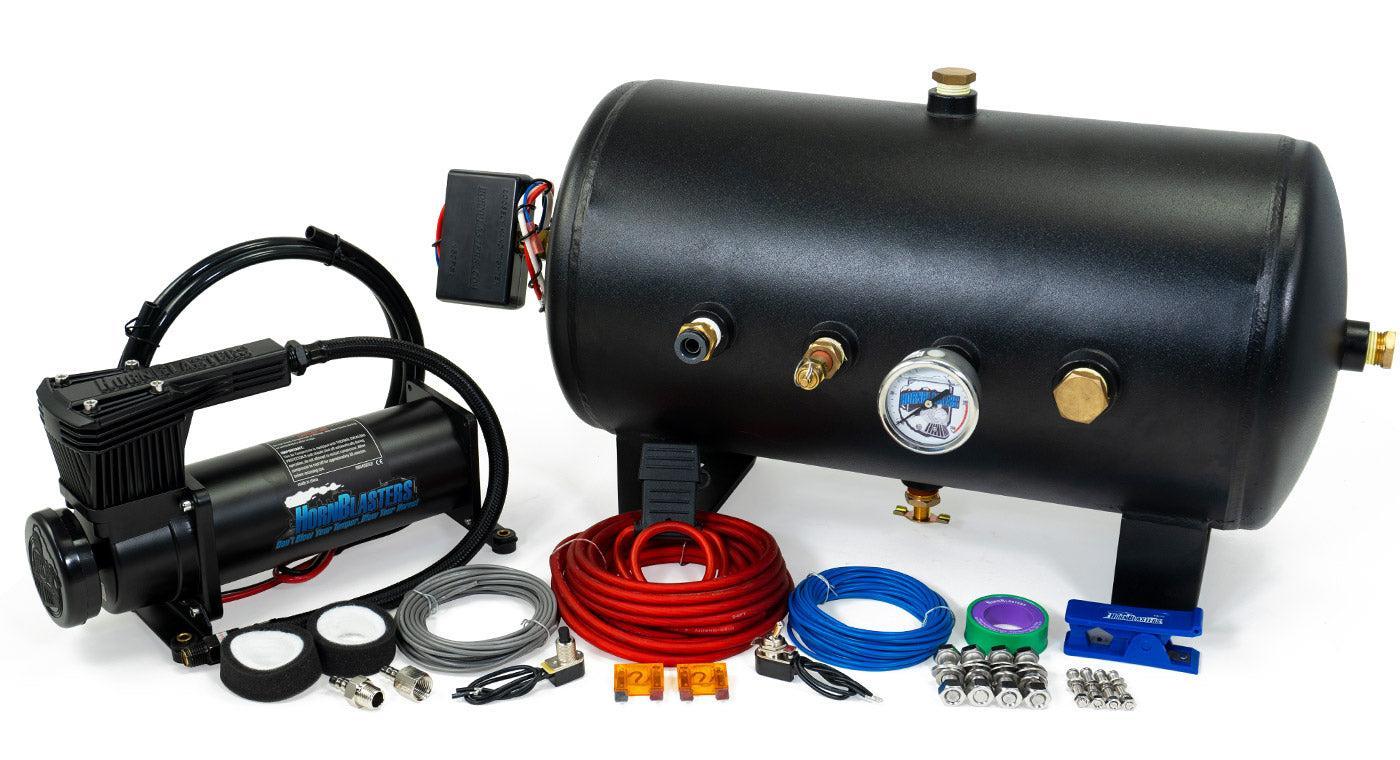

The air side is the HornAir 544K: a black 5-gallon, 8-port tank, the HornBlasters 1NM Stealth Black compressor, a 110/150 PSI pressure switch with a built-in 40 A relay, and a HornBlasters 1/2 in brass air valve. HornBlasters rates the kit at a maximum of 5-6 seconds of honk time and a 110-to-150 PSI recovery in about 2 minutes.

In our editorial reading, the King 3 is aimed at full-size pickup, work truck and large SUV owners who want the classic three-chime locomotive look and sound. With a 30 lb horn and a 20.5 in tank, it is not a compact-car kit. For the rest of the brand’s lineup, see our HornBlasters reviews hub.

Specifications

Spec	Value
Part numbers	HK-H3-544K (raw horn), HK-H3K-544K (Stealth Black horn)
Horn	HornBlasters King 3, 3-chime
Horn construction	Die-cast aluminum, stainless steel diaphragm, one-piece bells (brand description)
Horn dimensions (L x W x H)	16 x 19 x 9.5 in
Horn weight	30 lb (15.88 kg)
Horn port	1/2 in NPT
Sound output	Not published by HornBlasters (no dB figure or test distance)
Chord frequencies	Not published
Operating pressure (cut-out)	150 PSI
Restart pressure (cut-in)	110 PSI
Honk time	Up to 5-6 seconds (brand rating)
Tank	HornAir 5-gallon, 8-port, black
Tank dimensions	20.5 in L x 9.5 in dia., 11.5 in tall with legs
Tank weight	20 lb (9.07 kg)
Compressor	HornBlasters 1NM (HB-1NM), Stealth Black
Compressor flow	1.75 CFM at 0 PSI (compressor page)
Compressor duty cycle	100% at 100 PSI (50% at 200 PSI per compressor page)
Compressor dimensions	10.75 x 4 x 6.75 in
Compressor weight	8.0 lb per kit page; 10.1 lb per standalone compressor page
Voltage / max amperage	12 V DC / 25 A
Fill time, 0-150 PSI	6 min 45 sec (plus or minus 10 sec) at 13.8 V
Fill time, 110-150 PSI	2 min (plus or minus 5 sec) at 13.8 V
Valve	HornBlasters 1/2 in brass air valve
Price	$1,879.99 (raw horn), $1,979.99 (Stealth Black horn)
Warranty	5 years on the horn, 2 years on the rest of the kit (manufacturer’s defects)

Chimes

3

Pressure

110-150 PSI

Tank

5 gal

Honk time

5-6 sec

Horn weight

30 lb

Price

from $1,879.99

A note on the listing itself: the kit page’s metric conversions for the horn contain errors (19 in is shown as 78.74 cm and 9.5 in as 24.13 mm). The standalone King 3 page gives the correct 482.6 mm width. We use the inch figures, which match across both pages. The compressor weight also differs between the kit page (8.0 lb) and the compressor page (10.1 lb), so we show both.

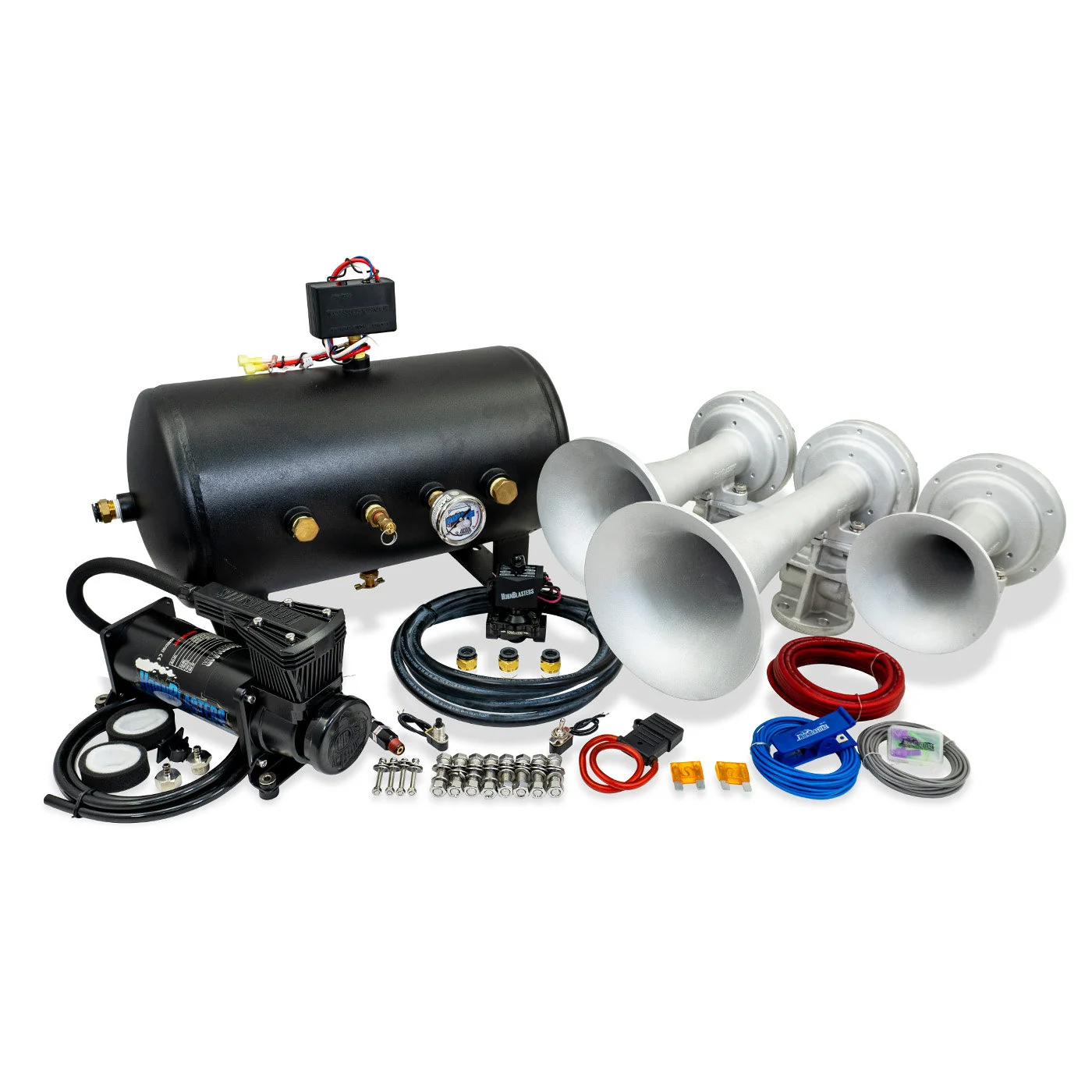

What’s in the box

Per the HornBlasters kit page, the King 3 544K ships with:

• HornBlasters King 3 three-chime train horn
• 5-gallon black 8-port air tank
• HornBlasters 1NM Stealth Black air compressor
• 110/150 PSI pressure switch with built-in 40 A relay
• HornBlasters 1/2 in brass air valve
• Spare air filters
• 17 ft of 1/2 in air line
• Brass fitting kit
• HornBlasters 200 PSI air gauge
• Wiring kit
• Hardware and installation instructions

HornBlasters itself suggests a tire inflation kit, a wireless remote and a mounting bracket as add-ons, so none of those are included.

Pros

• Full-size three-chime horn with die-cast aluminum construction and a stainless steel diaphragm, per HornBlasters
• Heavy-duty 5-gallon air system with a compressor rated 100% duty at 100 PSI and a roughly 2-minute recovery from 110 to 150 PSI
• Detailed published spec sheet for the air system: amperage, duty cycle, fill times and tank dimensions
• 5-year defect warranty on the horn, 2 years on the rest of the kit
• About $870 less than HornBlasters’ reconditioned Nathan AirChime K3 544K kit ($2,749.99)
• Owners of the standalone King 3 horn rate it 5.0 across four reviews and describe it as very loud

Cons

• No published dB rating, test distance or chord frequencies for the King 3
• Rated honk time of only 5-6 seconds, short for a 5-gallon system (HornBlasters rates the Katrina 544K at 7-10 seconds on the same air system)
• On paper the kit costs about $70 more than the King 3 horn ($1,149.99) and the HornAir 544K system without tire inflation ($659.99) bought separately
• 30 lb horn and 20.5 in tank need a lot of mounting space
• Kit listing has no buyer reviews of its own, plus metric-conversion errors and conflicting compressor weights
• No mounting bracket or remote included

Alternatives

• HornBlasters King 5 544K: the five-chime big brother on the same 5-gallon air system and the same 5-6 second honk rating, at $2,597.97-$2,747.97. Pick it if you specifically want a K5-format five-chime horn.
• Nathan AirChime K3 544K Kit: a reconditioned genuine Nathan K3 on a 5-gallon system for $2,749.99, which HornBlasters rates at roughly 7 seconds of honk. Pick it if railroad provenance matters to you.
• HornBlasters Katrina 544K: a five-trumpet kit on the same HornAir 544K system for $1,099.99, rated at 7-10 seconds of honk. In our editorial view, it is better value if you don’t need the three-chime locomotive look.

The Admiral 544 at $999.99 is another lower-cost option on the same air system.

Install / compatibility notes

The King 3 544K is a 12 V DC system that draws up to 25 A at the compressor. The pressure switch has a built-in 40 A relay, and the kit includes a wiring kit and 17 ft of 1/2 in air line. HornBlasters’ fill times are quoted at 13.8 V supply voltage, so expect them with the engine running and the alternator charging. Recovery will be slower on battery alone.

Plan for three large components:

• Horn: 16 x 19 x 9.5 in and 30 lb. On most pickups this means a frame-rail, bumper or roof mount with a sturdy bracket, which is sold separately.
• Tank: 20.5 in long, 9.5 in diameter, 11.5 in tall with legs, 20 lb empty. Common spots are under the bed, between frame rails or in a bed corner.
• Compressor: 10.75 x 4 x 6.75 in. Mount it somewhere dry with clean intake air. See our guide on where to mount a train horn compressor.

The 1/2 in air line matters. One owner of the standalone King 3 horn wrote that horns on other trucks had seemed “a tad weak,” suspected undersized air lines, and bought the recommended 1/2 in air line and valve setup. This kit already ships with 1/2 in line and a 1/2 in valve. Keep runs short and avoid unnecessary fittings.

Because the compressor is rated 100% duty at 100 PSI, the HornAir system can also run tire inflation and light air tools, per HornBlasters’ HornAir page. For how duty cycle limits that, see our compressor duty cycle explainer. For general steps, see how to install a train horn. Check your state’s horn laws before road use.

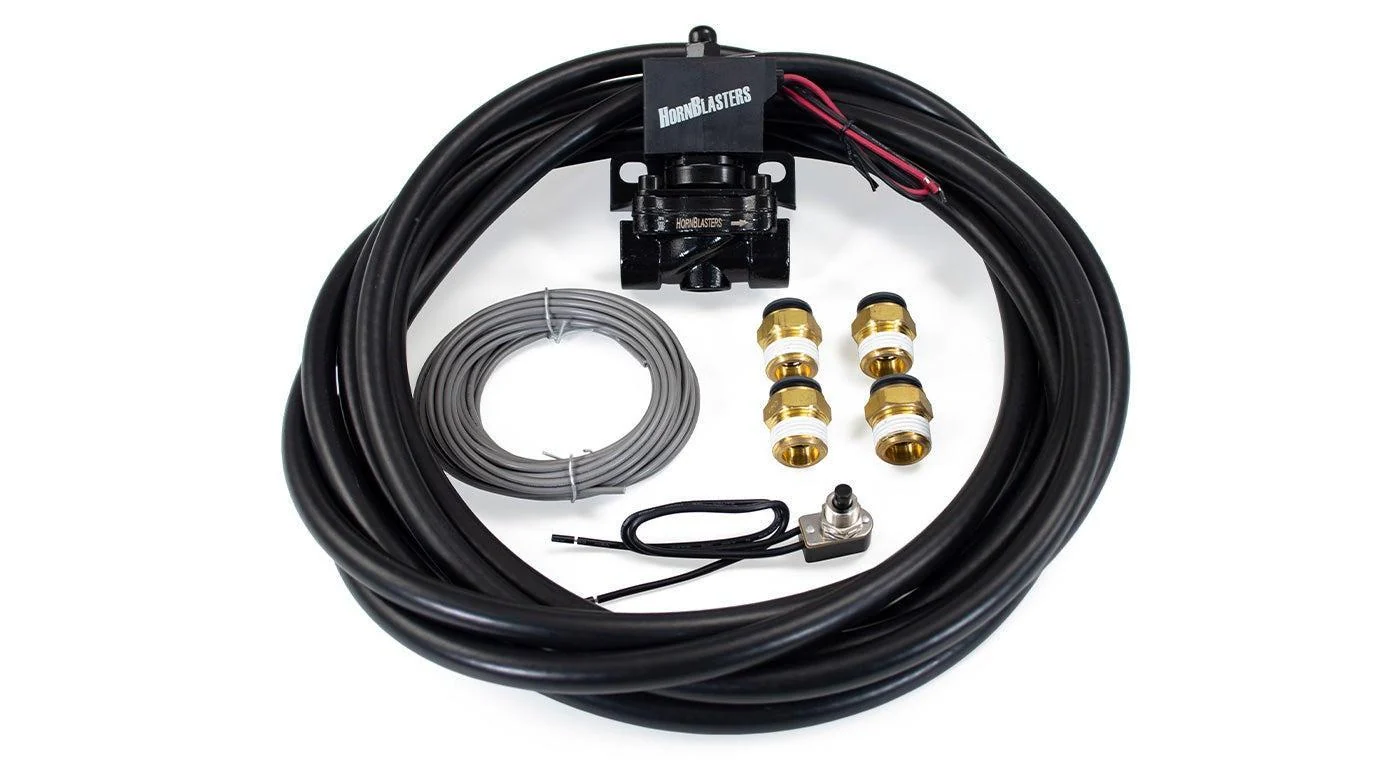

The last gallery image on HornBlasters’ page shows the valve, 1/2 in air line, brass fittings and wiring that connect the tank to the horn.

Sources

• HornBlasters — King 3 544K Train Horn Kit product page — part numbers, prices ($1,879.99 / $1,979.99), horn and tank dimensions and weights, 150/110 PSI, 12 V, 25 A, 100% duty at 100 PSI, compressor dimensions and 8.0 lb weight, fill times at 13.8 V, 5-6 sec honk time, kit contents, suggested add-ons, 5-year horn / 2-year kit warranty, listing date, metric-conversion errors
• HornBlasters — King 3 Train Horn (standalone) product page — die-cast aluminum construction, stainless steel diaphragm, 1/2 in NPT port, 482.6 mm width, AH-H3 / AH-H3K prices ($1,149.99 / $1,249.99)
• HornBlasters — HB-1NM Air Compressor product page — 1.75 CFM at 0 PSI, 50% duty at 200 PSI, 200 PSI max working pressure, 10.1 lb weight
• HornBlasters — HornAir 5-Gallon Onboard Air System page — HA-544K-HK price without tire inflation ($659.99), onboard-air uses
• HornBlasters — King 5 544K Train Horn Kit page — King 5 544K prices ($2,597.97 / $2,747.97) and 5-6 sec honk time
• HornBlasters — Nathan AirChime K3 544K Train Horn Kit page — $2,749.99 price and roughly 7 sec honk time
• HornBlasters — Katrina Train Horn Kit page — Katrina heavy-duty HK-C5B-544K at $1,099.99, 7-10 sec honk time
• HornBlasters — Admiral 544 Train Horn Kit page — Admiral 544 price $999.99
• HornBlasters — Train Horn Decibels Explained: Why Fake Ratings Mislead Buyers — 130+ dB for non-electric HornBlasters horns, Nathan AirChime K5 at 149.4 dB at 3 ft
• Stamped.io — buyer reviews for the standalone King 3 Train Horn listing — 5.0 average from 4 reviews (Timothy J., Apr 2023; Jason, Feb 2023; Jayson B., Feb 2023; Carson, Aug 2020), including the air-line comment
• Stamped.io — buyer reviews for the King 3 544K kit listing — no reviews on the kit listing as of review date
